SWARAJ
834 XM

RUGGED. RELIABLE. FUEL EFFICIENT.

Swaraj 834 XM is built to deliver. Strong to the core, it is designed to last, and run longer while using less fuel. Its extra mileage brings down the operational costs and increases your gains. Totally dependable, it makes flourishing times a reality.

Download Brochure

Features

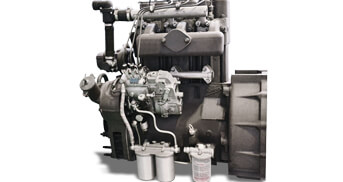

Engine - 3 cylinders

Powerful 3 cylinders water cooled engine

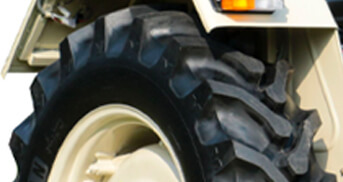

Bigger 13.6*28 Rear Tyre

Better gripping – Less slippage during field operation

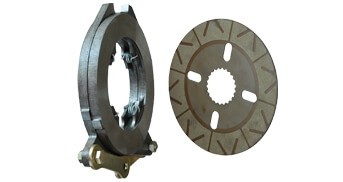

OIB

Better braking efficiency – Less maintenance – Longer life

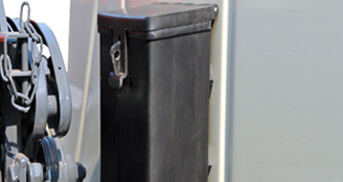

Mobile Cum Carrier Charger

Charge mobile while working in field – 24×7 connectivity with family

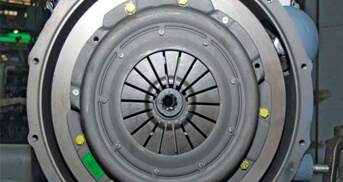

Diaphragm Type Single Clutch (Dia-280mm)

More contact area- better life, hence less maintenance

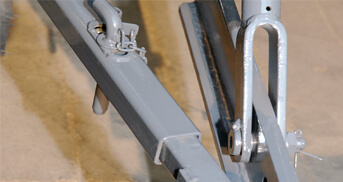

Stablizer Bar

Control sway of heavy implements like Rotavator

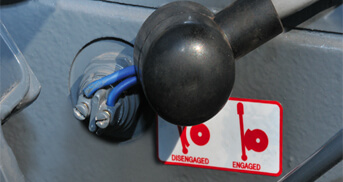

Neutral Safety Switch

Tractor starts only in neutral position – Safety feature

Specifications

Engine
  • Model RV-30 XM+ 3A
  • Power: 26.09 kW (30-35 HP)
  • Type 4 Stroke, Direct injection, Diesel engine.
  • No. of Cylinders 3
  • Bore and Stroke 100 X 110 mm
  • Displacement 2592 cm3
  • Rated Engine Speed 1800 r/min.
  • Air Cleaner 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank.
Clutch
  • Clutch Standard Single dry disc friction plate - 280mm dia. (11)
  • Clutch Optional NA
Gear Speeds
  • No. of Gears 8 Forward, 2 Reverse speeds
  • Forward 2.14 to 27.78
  • Reverse 2.68 & 10.52
PTO
  • PTO Speed: Standard 1000 r/min
  • PTO Speed: Optional 540 r/min
Brakes
  • Brake type: Stanrad Dry Disc type Brakes
  • Brake type: Optional Oil Immersed Brakes
Steering
  • Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional NA
Hydraulics
  • Live Hydraulics "A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control :
  • For optimum field output
  • Lifting Capacity 1000 kg at lower link ends.
  • Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre Standard 12.4 x28
  • Front Tyre / Rear Tyre (Optional) 6.00 x 16 / 13.6 X 28
Electricals & Electronics
  • Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
  • Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length 3475 mm
  • O.A. Width 1705 mm
  • O.A. Height 2250 mm
  • Wheel Base 1930 mm
  • Min. Ground Clearance 380 mm
  • Weight of Tractor 1845 kg
  • Wheel Track Front 1300 mm
  • Wheel Track Rear 1350 mm (with 12.4*28 Tyre type)
