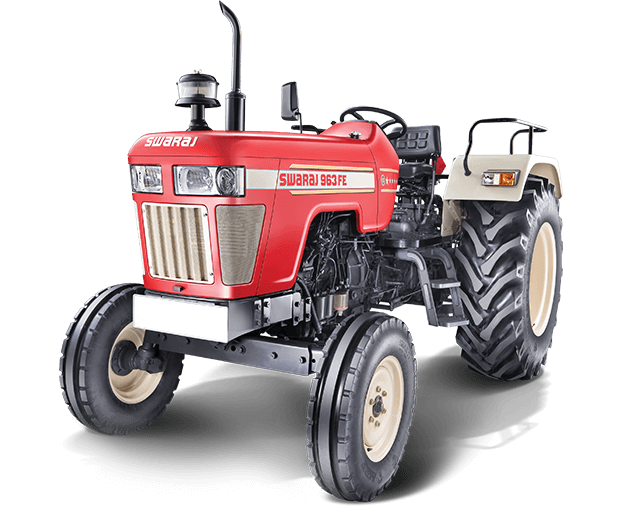

SWARAJ
963 FE

RUGGED . RELIABLE.

The Swaraj 963 FE conquers every land, transforming it into a flourishing field of crops. While being rugged, it even has features that make it more stable. With a reliable tractor like Swaraj FE working alongside, you can take your growth story ahead.

Features

Specifications

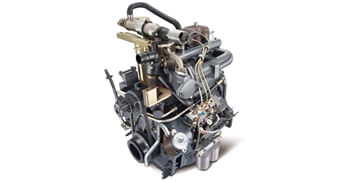

Engine
  • Power: 44.74 - 48.47 kW (60-65 HP)
  • Type: 4 Stroke, Direct injection, Diesel engine
  • No. of Cylinders: 3
  • Bore and Stroke: 110 X 122 mm
  • Displacement: 3478 cm3
  • Rated Engine Speed: 2100 r/min.
  • Air Cleaner: Dry type
  • Cooling System: Water Cooled with no-loss tank
Clutch
  • Clutch: "Mechanically actuated double clutch (independent PTO) with cerametallic friction lining
  • Bigger 12 clutch

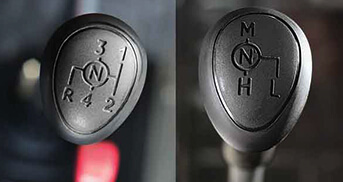

Gear Speeds
  • Forward: 0.90 to 31.70 (standard) & 0.50 to 31.70 (creep)
  • Reverse: 2.8 & 10.6 (standard) & 1.8 & 7.8 (creep)
  • No. of Gears: 12 Forward, 2 Reverse speeds
PTO

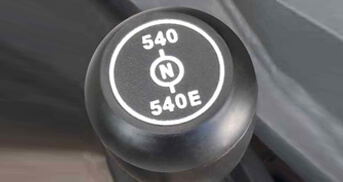

  • PTO speed: 540, 540E, 8 Multispeed Forward & 2 Reverse PTO r/min
Brakes
  • Brake type: Oil-Immersed type disc brakes
Steering
  • Steering type: Power steering

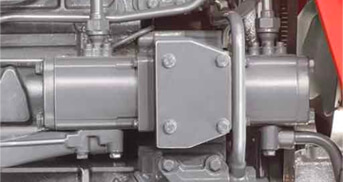

Hydraulics
  • Hydraulics: "Live Hydraulics
  • Lifting Capacity: 2200 kg at lower link ends
  • Linkage Category:2 with fixed type lower links
Tyre Type
  • Front Tyre: 7.50 x 16
  • Rear Tyre: 16.9 x 28
Electricals & Electronics
  • Electricals: 12 V, 100 Battery starter motor & alternator

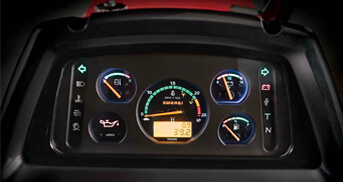

  • Instruments: Digital instrument cluster
Weights & Dimensions
  • O.A. Length: 3730mm (with lower link horizontal position)
  • O.A. Width: 1930mm
  • O.A. Height: 2310mm
  • Wheel Base: 2210mm
  • Min. ground Clearance: 425mm
  • Weight of Tractor: 2650 kg
  • Wheel track "Front": 1410 mm
Rear Axle
  • Planetary reduction for longer life and low maintenance
