SWARAJ
735 FE

RELIABLE. VERSATILE.

The Swaraj 735 FE conquers every land, transforming it into a flourishing field of crops. While being rugged, it even has features that make it more stable. With a reliable tractor like Swaraj 735 FE working alongside, you can take your growth story ahead.

Download Brochure

Features

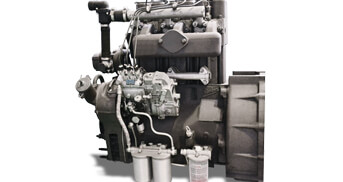

Engine

Fuel efficient water cooled 3 cylinders engine

Power Steering

More stability on haulage – Comfortable driving

OIB

Better braking efficiency – Less maintenance – Longer life

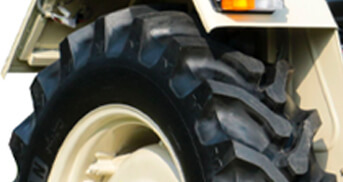

Bigger 13.6*28 Rear Tyre

Better gripping – Less slippage during field operation

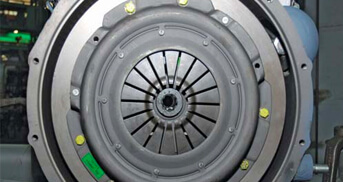

Diaphragm Type Single Clutch (Dia-280mm)

More contact area- better life, hence less maintenance

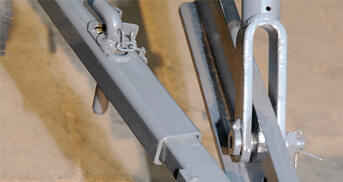

Stablizer Bar

Control sway of heavy implements like Rotavator

Specifications

Engine
  • Model RV-3 XM+ 3A
  • Power: 26.09 – 29.82 kW (35-40 HP)
  • Type 4 Stroke, Direct injection, Diesel engine.
  • No. of Cylinders 3
  • Bore and Stroke 100 X 116 mm
  • Displacement 2734 cm3
  • Rated Engine Speed 1800 r/min.
  • Air Cleaner 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank.
Clutch
  • Clutch Standard Single dry disc friction plate – 280 mm dia.
  • Clutch Optional Dual Clutch
Gear Speeds
  • No. of Gears 8 Forward, 2 Reverse speeds
  • Forward 2.30 to 27.80
  • Reverse 2.73 & 10.74
PTO
  • PTO Speed: Standard 1000 r/min
  • PTO Speed: Optional 540 r/min
Brakes
  • Brake type: Standard Dry Disc type Brakes
  • Brake type: Optional Oil Immersed Brakes
Steering
  • Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional Power steering
Hydraulics
  • Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
  • Lifting Capacity 1000 kg at lower link ends.
  • Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre Standard 12.4 x28
  • Front Tyre / Rear Tyre (Optional) 6.00 x 16 / 13.6 X 28
Electricals & Electronics
  • Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
  • Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length 3470 mm
  • O.A. Width 1695 mm
  • O.A. Height 2255 mm
  • Wheel Base 1950 mm
  • Min. Ground Clearance 395 mm
  • Weight of Tractor 1895 kg
  • Wheel Track Front 1300 mm
  • Wheel Track Rear 1350 mm (with 12.4*28 Tyre type)
