SWARAJ
744FE

RELIABLE. VERSATILE.

The Swaraj 744 FE conquers every land, transforming it into a flourishing field of crops. While being rugged, it even has features that make it more stable. With a reliable tractor like Swaraj 744 FE working alongside, you can take your growth story ahead.

Download Brochure

Features

Multi Speed Forward & Reverse PTO

Provides high r/min on PTO even at low engine r/min, hence saves fuel on applications like alternator ,thresher & genset. Hence more fuel savings

Power Steering

Ease of turning – operator comfort

Direction Control Valve (DCV)

Ease of operation for operating external hydraulic implements like reversible M.B plough & Dozer etc.

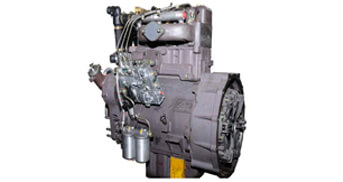

Powerful 3 Cylinders Water Cooled Engine

Powerful 3 Cylinders Water Cooled Engine

Dual Clutch

Uninterrupted PTO operation – More output

Adjustable Front Axle

Easy adjust of front track – Suitable for inter cultivation like potato farming

OIB

Better braking efficiency – Less maintenance – Longer life

Specifications

Engine
  • Model RB-30 TR
  • Power: 33.55 – 37.28 kW (45-50 HP)
  • Type 4 - Stroke, Direct Injection, Diesel Engine
  • No. of Cylinders 3
  • Bore and Stroke 110 X 110 mm
  • Displacement 3136 cm3
  • Rated Engine Speed 2000 r/min
  • Air Cleaner 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank. Oil Cooler for engine oil
Clutch
  • Clutch Standard Single dry disc friction plate - 305 mm dia.
  • Clutch Optional Dual Clutch
Gear Speeds
  • No. of Gears 8 Forward, 2 Reverse speeds
  • Forward 3.1 to 29.2
  • Reverse 4.3 & 14.3
PTO
  • PTO Speed: Standard 1000 r/min
  • PTO Speed: Optional 540 r/min , CR- PTO with Multi speeds
Brakes
  • Brake type: Stanrad Dry Disc type Brakes
  • Brake type: Optional Oil Immersed Brakes
Steering
  • Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional Power Steering
Hydraulics
  • Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
  • Lifting Capacity 1700 kg at lower link ends.
  • Linkage 3 point linkage suitable for Category-I & II type implement pins.
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre Standard 13.6 x28
  • Front Tyre /Rear Tyre Optional 7.50 x16 / 14.9 X 28
Electricals & Electronics
  • Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
  • Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length 3440 mm
  • O.A. Width 1730 mm
  • O.A. Height 2275 mm
  • Wheel Base 1950 mm
  • Min. Ground Clearance 400 mm
  • Weight of Tractor 1990 kg
  • Wheel Track Front 1300 mm
  • Wheel Track Rear 1350 mm (with 13.6*28 tyre type)
