SWARAJ
855 FE

RELIABLE. POWERFUL

The Swaraj 855 FE conquers every land, transforming it into a flourishing field of crops. While being rugged, it even has features that make it more stable. With a reliable tractor like Swaraj 855 FE working alongside, you can take your growth story ahead.

Download Brochure

Features

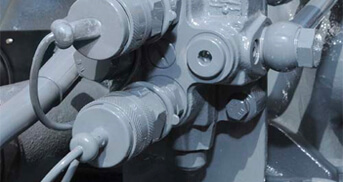

Direction Control Valve (DCV)

Ease of operation for operating external hydraulic implements like reversible M.B plough & Dozer etc.

Multi Speed Forward & Reverse PTO

Provides high r/min on PTO even at low engine r/min, hence saves fuel on applications like alternator ,thresher & genset. Hence more fuel savings

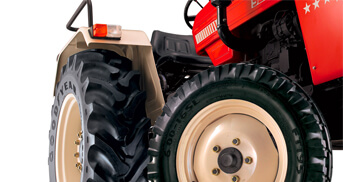

Front - 7.50X16/Rear-16.9X28

Better gripping – Less slippage during haulage & field operations

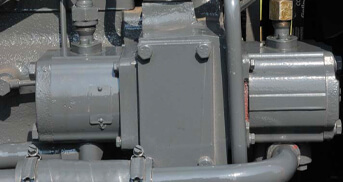

Power Steering

Ease of turning – operator comfort

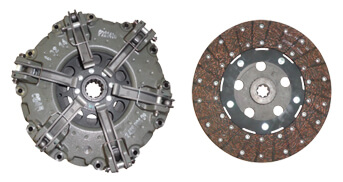

Dual Clutch

Uninterrupted PTO operation – More output

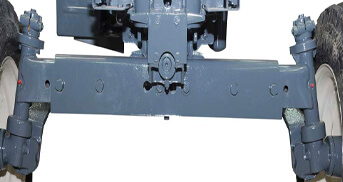

Adjustable Front Axle

Easy adjust of front track – Suitable for inter cultivation like potato farming

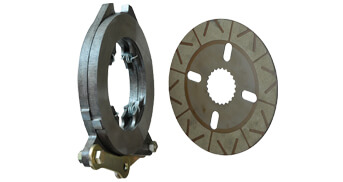

OIB

Better braking efficiency – Less maintenance – Longer life

Specifications

Engine
  • Model: RB-33 TR
  • Power: 37.28 - 41.01 kW (50-55 HP)
  • Type: 4 - Stroke, Direct Injection, Diesel Engine
  • No. of Cylinders: 3
  • Bore and Stroke: 110 X 116 mm
  • Displacement: 3307 cm3
  • Rated Engine Speed 2000 r/min
  • Air Cleaner: 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank. Oil Cooler for engine oil
Clutch
  • Clutch Standard: Single dry disc friction plate - 305 mm dia.
  • Clutch Optional Dual Clutch
Gear Speeds
  • No. of Gears: 8 Forward, 2 Reverse speeds
  • Forward: 3.1 to 30.9
  • Reverse: 2.6 to 12.9
PTO
  • PTO Speed: Standard 1000 r/min
  • PTO Speed: Optional 540 r/min, CR-PTO with Multi speeds
Brakes
  • Brake type: Standard Dry Disc type Brakes
  • Brake type: Optional Oil Immersed Brakes
Steering
  • Standard: Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional Power Steering
Hydraulics
  • Live Hydraulics: "A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
  • Lifting Capacity: 1700 kg at lower link ends.
  • Linkage: 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre: Standard 14.9 x28
  • Front Tyre /Rear Tyre Optional: (7.50 x 16 / 16.9 X 28)/(7.50 x 16 / 14.9 X 28)/(6.00 x 16 / 13.6 X 28)
Electricals & Electronics
  • Electricals: 12 V, 99 Ah. Battery Starter motor & Alternator
  • Instruments: Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length: 3420 mm
  • O.A. Width: 1715 mm
  • O.A. Height: 2275 mm
  • Wheel Base: 2050 mm
  • Min. Ground Clearance: 400 mm
  • Weight of Tractor: 2020 kg
  • Wheel Track Front: 1300 mm
  • Wheel Track Rear: 1350 mm (with 13.6*28 tyre size)
